4-20mA 1-5V Output Flush Diaphragm Pressure Transmitter IP65

Brand Name : WNK

Model Number : WNK805

Place of Origin : Anhui, China

MOQ : 1pcs

Price : $45.00 - $65.00/Pieces

Payment Terms : T/T, Western Union, MoneyGram, Paypal

Supply Ability : 2000 Piece/Pieces per Month

Delivery Time : 5-8 work days

Packaging Details : paper carton or as per clients' requirement

Warranty : 1 YEAR

Customized support : OEM, ODM

Pressure range : 0-0.2 ~ -100kPa; 0-0.2 ~ 1000kPa 60000kPa

Comprehensive accuracy : 0.1, 0.25, 0.5, 1.0

Output : 4~20mA; 0~20mA; 0~10mA; 0~20V; 1~5V

Protection class : IP65

Housing material : ss316

Approvals : Ex-proof, ISO9001-2015

Pressure type : gauge, absolute, vacuum, negative pressure

OEM service : OEM, ODM, customization available

Application : oil&gas, petrol, petrochemical, chemical industry

MOQ : 1

Port : shanghai

Contact Now

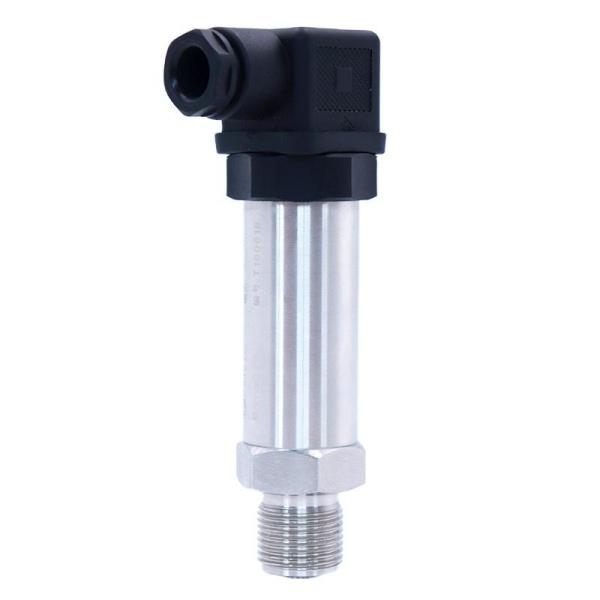

4-20mA 1-5V Output Flush Diaphragm Pressure Transmitter

WNK805 integral pressure transmitter adopts stainless steel shell structure, built in stainless steel oil filled sensor, intelligent digital circuit with precise temperature characteristic compensation, it can be used reliably and stably, it is suitable for gas, liquid, steam pressure measurement and pressure measurement with corrosive media.

WNK805 Gauge/Absolute Pressure Transmitter (Diffused silicon sensor)
Applicable media	Liquid, Gas, Steam
Pressure measurment	Gauge Pressure, Absolute pressure, Negative pressure, Sealing pressure
Pressure range	0-0.2~-100kPa, 0-0.2~1000kpa, 60mPa
Output signals	4~20mA, 1-5V for optional
Accuracy	0.2, 0.5
Stability	±0.25% FS/year
Zero drift	50% of full range span.
Max overload	200% of sensor range
Display	LED (Optional)
Housing material	304 stainless steel
Mechanical connection	M20×1.5; 1/2-18NPT, 1/4NPT, Customize; Diaphragm, Clamp
Power supply	Non-explosion: 10.5~45V DC
Power supply	EEX ia:10.5~30 V DC
Ambient temperature	-40~85℃
Process temperature	-40~85℃
